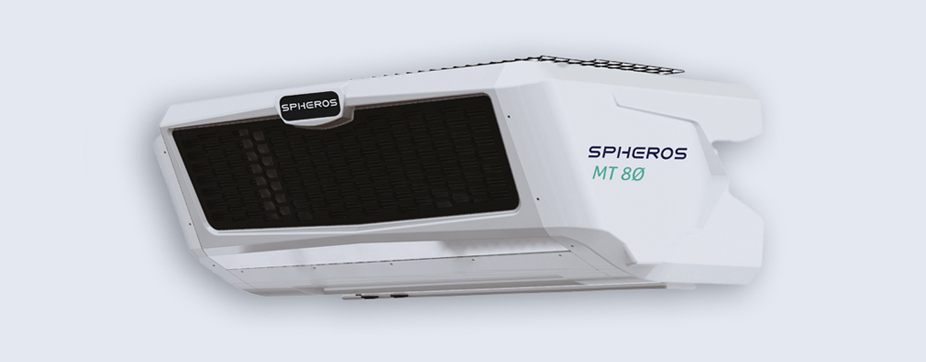

MT 80

DESIGNED FOR TODAY READY FOR TOMORROW

Experience innovation with the NEW MT 80’s future-proof design. Reduced fuel consumption and maximized efficiency without compromising performance. Full colour touchscreen providing intuitive access to system diagnostics, performance metrics and control functions with ease. Lower services costs and downtime ensures operational reliability and overall cost effectiveness.

Highlights

ADVANTAGES

Future proof design
Sensor enhancements
Fast pull down and accurate temperature control
Reduced fuel consumption through engine speed control and electric compressor clutch.
Long life components
Easy bulkhead installation & layout, providing ease of access for optimized maintenance time

STANDARD FEATURES

User friendly full colour touch screen
Standalone diesel engine and electric standby motor
Motor protection module
Brushless speed controllable condenser and evaporator fans

Technical data

MT 80
Cooling Capacity * (W / BTU/h)
Diesel / 0°C (32°F)
Diesel / -20°C (-4°F)		 8800
4500
Cooling Capacity * (W / BTU/h)
Electric / 0°C (32°C)
Electric / -20°C (-4F)		 6200
3400
Air Volume Flow (m³/h) / (cfm) 3700
Aperture Dimensions Width x Height (mm / inch) 1250
350
Weight (kg / lbs) 513
Compressor Type
Cylinders
Displacement (cm³ / cu.in.)		 FKX30/275
2
275
Diesel Engine Cylinders
Displacement (cm³ / cu.in.)		 3
854
Electric motor

Power / 220V 3~ (kW at 60Hz)
Power / 380V 3~ (kW at 50Hz)

Current consumption / 220V 3~ (A at 60Hz)
Current consumption / 380V 3~ (A at 50Hz)		 5,5
5,5

10,7
21
* at 30°C (86°F) ambient / R404A
