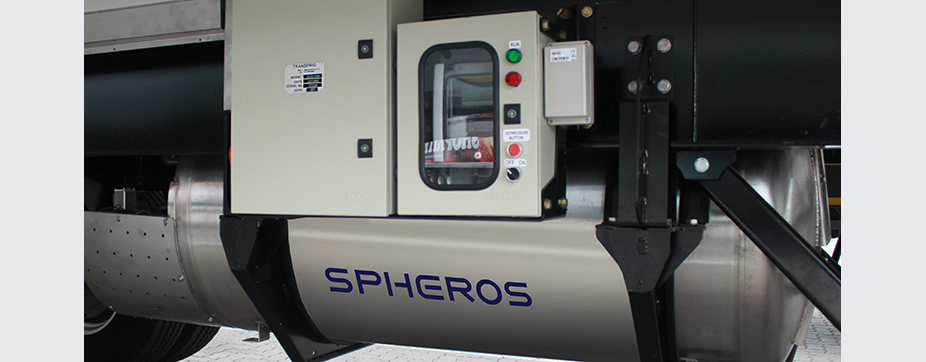

CryoFridge

Liquid Nitrogen unit for rigid trucks and trailers

The key to CryoFridge’s environmentally-friendly operation is nitrogen – a colourless and odourless gas constituting approximately 78% of Earth’s atmosphere. This silent running on the road emission free transport refrigeration system, is available in three liquid nitrogen tank volumes. Reduced maintenance and service costs due to minimal moving parts ensures high operational reliability and overall cost effectiveness.

Highlights

Characteristics

Available in three different tank sizes for trucks and trailers
Highest cooling performance for fast cool down compared to conventional systems

Environmental advantages

Silent running
On road emission free
Zero particle emission
Clean and user friendly

More Benefits

Quick Pull down
No bulkhead mount unit
Equipment longevity
Simple operation

Installation kit includes

Liquid nitrogen pressure vessel
Evaporator
Tank securing brackets
Electrical control box
Exhaust box
Door switch

Standard features

Down-loadable diagnostics
Multi-temperature applications on request
Easily accessible controls

Optional extras

Telematics
Solar system to power controls and evaporator fans

Technical data

Cryo MT 950 Cryo MT 650 Cryo 650 Cryo 450
Cooling Capacity * (W / BTU/h)
0°C to -25°C
18000 / 61400 10000 / 34100 10000 / 34100 10000 / 34100
Air Volume Flow (m³/h) / (cfm)
4 fan evaporator
2 fan evaporator
3072 / 1808
1462 / 860
3072 / 1808
1462 / 860
3072 / 1808
1462 / 860
Pressure vessel gross volume (m³) 1 0.65 0.65 0.45
Weight (kg / lbs)
Pressure vessel
Kit
Total
508 / 1120
250 / 551
726 / 1600
370 / 815
250 / 551
810 / 1785
370 / 815
190 / 418
560 / 1234
287 / 632
160 / 352
447 / 985
Working pressure (bar) 2.6 2.6 2.6 2.6
* at 30°C(86°F) ambient temperature / R404A
