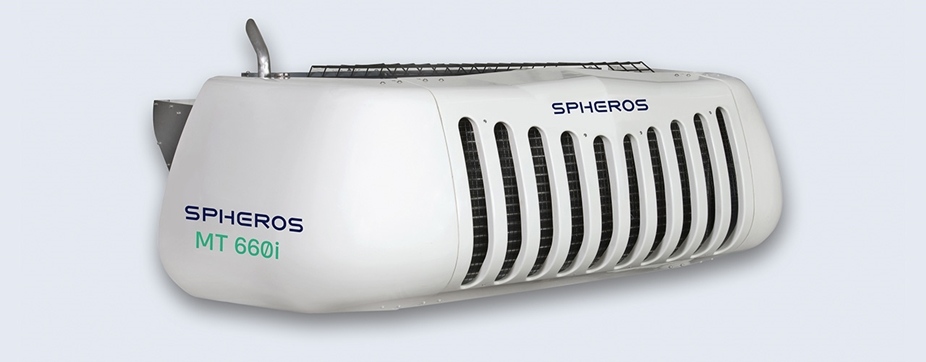

MT-Series

One piece Diesel Electric transport refrigeration unit for medium and large rigid trucks | THE E-VALVE ENHANCES PERFORANCE

Due to a new electronic expansion valve the Diesel Electric MT line improves efficiency, cares for faster pull-down and ensures accurate temperature control. Available in four different capacity models the MT Diesel Electric line covers all the requirements for the distribution of all perishable goods. Taking into consideration ambient temperature, body insulation and the number of door openings. An MT unit is suited to cater for your requirements. Reduced fuel consumption, lower service costs and downtime ensures high operational reliability and overall cost effectiveness.

Highlights

Characteristics

Fast pull down and precise temperature control due to new electronic expansion valve
Improved controls with new PLC, with built in safety features
Easily available downloadable diagnostics via USB through the Intelleligent Logic Controller
Robust design and quality components, designed for tough operating conditions.
Easy bulkhead installation & layout, providing ease of access for optimized maintenance time

Standard features

Multi Temperature systems available throughout the range
Thermostatically controlled fan, multi temperature systems on request
Standalone diesel engine and electric standby motor
Auto phase detection and correction
Simple in-cab control, increased ease of operation

Installation Kit Includes

Fixing bolts
Electric connection KIT
Fuel pump KIT
Cab controls

Optional Extras

Door switches
Refrigerant R134a (for positive temperature only)
Telematics

Technical data

MT 220i MT 310i MT 460i MT 660i
Cooling Capacity * (W / BTU/h)
Diesel / 0°C (32°F)
Diesel / -20°C (-4°F)
3600 / 12300
2100 / 7200
5000 / 17100
3000 / 10200
7900 / 27000
4500 / 15400
10500 / 35800
6300 / 21500
Cooling Capacity * (W / BTU/h)
Electric / 0°C (32°C)
Electric / -20°C (-4F)
2700 / 9200
2000 / 6800
3700 / 12600
2300 / 7850
5900 / 20100
3400 / 11600
7800 / 26600
4700 / 16000
Air Volume Flow (m³/h) / (cfm) 2000 / 1177 3000 / 1766 3300 / 1942 3900 / 2295
Aperture Dimensions Width x Height (mm / inch) 780 x 325 / 30.7 x 12.8 1250 x 325 / 49.2 x 12.8 1250 x 350 / 49.2 x 13.8 1420 x 350 / 55.9 x 13.8
Weight (kg / lbs) 306 / 674 346 / 762 390 / 859 564 / 1243
Compressor Type
Cylinders
Displacement (cm³ / cu.in.)
FKX30/235
2
235 / 14.3
FKX30/235
2
235 / 14.3
FKX30/325
2
325 / 19.8
FKX40/470
4
470 / 28.6
Diesel Engine Cylinders
Displacement (cm³ / cu.in.)
2
482 / 29.4
2
482 / 29.4
3
722 / 44.1
3
1005 / 61.3
Electric motor

Power / 220V 3~ (kW at 60Hz)
Power / 380V 3~ (kW at 50Hz)

Current consumption / 220V 3~ (A at 60Hz)
Current consumption / 380V 3~ (A at 50Hz)
3
3

10,9
6,6
4
4

13,5
8,5

5.5
5.5

21
10.7

7.5
7.5

26
16.1
* at 30°C (86°F) ambient / R404A
