R-Series

Slim line and light weight units for vans and small trucks.

Spheros' well estimated R-Series units provide a slim line and light weight over road refrigeration option. The two piece units are suitable for bulk head or roof mount with or without electric standby.

Highlights

Comfort

Available with or without electric standby for 220V 1~ or 380V 3~ grid voltage available throughout the range
12V or 24V throughout the range

Environmentally friendly

Available with R134a and R404A, ozone friendly refrigerant

Low life-cycle-costs

Slim line, 2 piece unit
Light weight
Suitable for bulk head and roof mount

Wide range of application

Designed for pharmaceutical transport with LDVs (light duty vehicles)

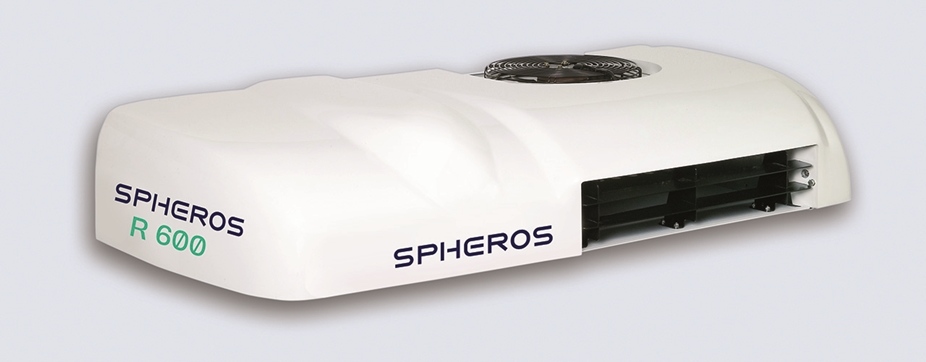

R510 / R610

The new R510/R610 series are suitable to run together with the vehicle's air-conditioner, utilizing a single refrigeration compressor as well as supply heating in medium temperature application

Technical data

R 500 / R 510 R 600 / R 610
Cooling Capacity * (kW / BTU/h)
Road, 0°C/32°F
Road, -20°C/-4°F
2.3 / 7850
1.5 / 5100
3.1 / 10600
1.8 / 6150
Cooling Capacity * (kW / BTU/h)
Electric, 0°C/32°F
Electric, -20°C/-4°F
1.5 / 5100
0.9 / 3072
1.8 / 6150
1.0 / 3400
Air Volume Flow (m³/h) / (cfm) 1400 / 824 2200 / 1295
Weight (kg / lbs)
Road only
incl. electric standby
65 / 143
70 / 154
115 / 253
120 / 264
Road compressor TCCI15 TCCI15
Electric motor for standby compressor (50Hz / 60Hz)

Power / 220V 1~ (kW)
Power / 380V 3~ (kW)

Current consumption / 220V 1~ (A)
Current consumption / 220V 3~ (A)
Current consumption / 380V 3~ (A)
2.2
2.2

14
9.3
5.4

2.2
2.2

14
9.3
5.4
* at 30°C (86°F) ambient temperature / R404A
