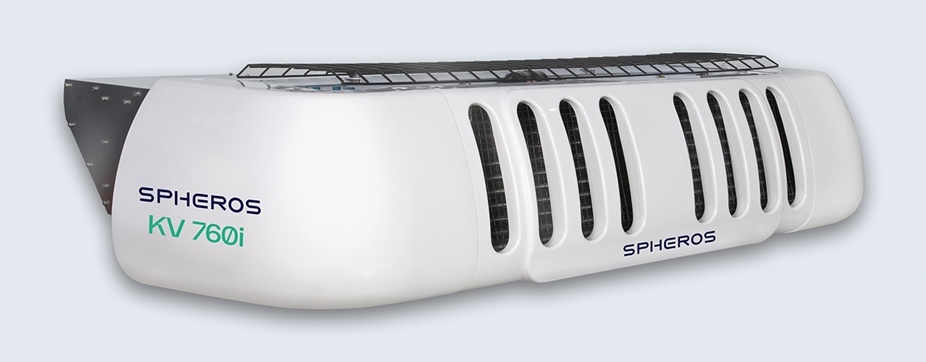

Koolvan

One piece unit for small to medium sized trucks - INTELLIGENCE RUNS COOL

The Koolvan series offers a highly flexible range of one piece direct drive transport refrigeration units for small to medium sized trucks, off engine drive with or without electric standby. The INTELIGENT LOGIC CONTROLLER (ILC) ensures improved control, temperature management and operation. Customers profit from a fast access of diagnostics, easily to be downloaded via USB.

Highlights

Characteristics

High volume, constant airflow through electronic evaporator fans for improved air management
Optional electric standby with high performance semi-hermetic compressor
Smart PLC (Programmable Logic Controller) for improved control, temperature management and diagnostics (with USB download)
Simple In-Cab Control, increased ease of operation

Environmentally friendly

Available with R134a and R404A, ozone friendly refrigerant

Reliability & durability

Robust design and quality components
Designed for tough operating conditions

Compressor advantages

Powerful semi-hermetic compressor, electric standby option in 220V 1phase or 380V 3phase
KV660i, KV760i and KV860i available with 380V 3phase standby

Technical data

KV 560i KV 660i KV 760i KV 860i
Cooling Capacity * (W / BTU/h)
Road 0°C/32°F
Road -20°C/-4°F
 2300 / 7850
1500 / 5100		 3700 / 12600
2200 / 7500		 4200 / 14300
2800 / 9550		 4700 / 16000
3100 / 10600
Cooling Capacity * (W / BTU/h)
Electric 0°C/32°F
Electric -20°C/-4°F
 2300 / 7850
1500 / 5100		 3700 / 12600
2200 / 7500		 4200 / 14300
2800 / 9550		 4700 / 16000
3100 / 10600
Air Volume Flow (m³/h) / (cfm) 1500 / 883 2000 / 1177 3000 / 1766 3900 / 2295
Weight (kg / lbs)
Road only
incl. electric standby		 95 / 209
140 / 309		 99 / 218
145 / 320		 105 / 231
165 / 364		 115 / 253
175 / 386
Road Compressor TCCI QP7H15 TCCI QP7H15 TCCI QP7H15 TCCI QP7H15
Semi-hermetic standby compressor Type
(50 Hz / 60 Hz)

Power / 220V 1~ (kW)
Power / 380V 3~ (kW)

Current consumption / 220V 1~ (A)
Current consumption / 380V 3~ (A)		 D1,5-9Y


2.2
2.2

10.2
5,9		 D2-13Y

3,3
3,3

14,4
7,1		 D3-16Y

n/a
5,4

n/a
9,9		 D3-16Y

n/a
5,4

n/a
9.9
* at 30°C (86°F) ambient temperature / R404A
